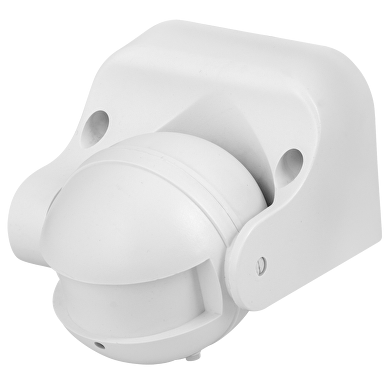

Microwave sensor for surface mounting 360° / 180°

Microwave sensors have higher sensitivity and greater detection range compared to PIR sensors. The signal of the microwave sensor can pass freely through wood, glass and thinner walls. Ultralux® sensor MSOM is designed for wall mounting. It can work with incandescent lamps and LED lighting. Its ingress protection rate IP44 makes it suitable for areas with moderate levels of dust and moisture. Function: Identifying daytime and nighttime Adjusting detecting distance Adjusting time delay

Voltage AC	220~240V
Warranty	2 years
Frequency	50~60Hz
Maximum load (active/reactive)	1200/300W
Sensor working frequency	5.8GHz
Output signal power	<0, 2mW
Protection rating	IP44
Working temperature range	20 ⁰C ÷ +40 ⁰C
Time delay	10 sec. -12min
Detection distance	1-8m
Installation height	1, 5-3.5m
Ambient light	<3-2000lx
Detection range	360°/180°
Self consumption	0.9W
Detection moving speed	0.6 – 1.5m/s
Working humidity	<93%RH
