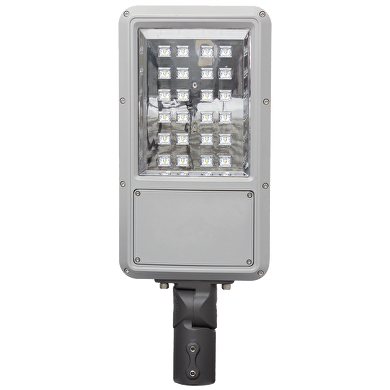

LED street lamp 220V, 30W, 4200K, IP66

Housing: Made of aluminium die-cast, powder-painted. The last layer provides corrosion and aging protection. Optical system: Anodized PP plastic reflector and special light distribution lens (covers Type III IES Classifications); Diffuser with super white tempered glass; Base plate: Double chromed steel plate, special screw fastening. Finishing: Surface anti-ageing electrostatic spray processing super resistance to corrosion. Fixing: Top or side fitting ø60 mm, adjustable angle.

Driver	MEANWELL HLG series
Power	30W
Class	I
Dimensions	250/630/80mm
Efficiency	92lm/W
Warranty	5 years
Input voltage	115-277V
Frequency	50~60Hz
Power factor	>0.9
Protection rating	IP66
Impact protection rate	IK09
Working temperature range	40 ⁰C ÷ +70 ⁰C
Diffuser	transparent tempered glass
On/Off cycles	>30000
Housing	powder coated aluminium die-cast
Weight	5.80kg
Lumen Maintenance LM80	>60000h
Max light intensity	528.93cd/klm
Rated luminous flux	3000lm
Flicker	Flicker free
Correlated Color Temperature (CCT)	4200K
Color Rendering Index (CRI)	>75
Beam angle	Type III according to IES⁰
LED type	CREE XT-E
Photometric file (.LDT)	Yes
