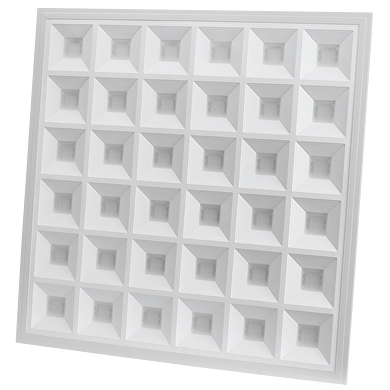

LED panel low-glare for building-in. Very high efficiency – 120 lm/W, thanks to the Bridgelux LEDs. High-quality non-dimmable driver Lifud, ensuring excellent EMC, flicker-free light, and long exploitation period. A system of reflectors and optical lenses creates a special light distribution with low glare level UGR<19. The dimensions of the panel allow quick and easy mounting in suspended ceilings. Aluminium PCBs for better cooling of the LED chips. Option for installation with: frame model FSM662 (for surface mounting), frame model RV66 (for building-in), suspending accessories KELP82 and clips for building-in SCLP4. All the aforementioned items are sold separately. The diffusers and lenses are made of polycarbonate – a material with great mechanical properties, UV-resistant and fire retardant. The panel finds a wide usage in lighting projects such as hospitals, schools, libraries, public and administration buildings, etc. The LED panel could be dimmed by using one of the following Ultralux dimmable drivers.
LED panel low-glare UGR<19 600х600 mm, 40W, 4000K, 220V-240V AC
Warranty | 3 years |
---|---|
Power | |
Dimmable | with additional driver |
Dimensions | 595/595/20mm |
Voltage AC | 220~240V |
Frequency | 50~60Hz |
Power factor | >0.9 |
Protection rating | IP20 |
Working temperature range | -10 °C ~ +40 °C |
On/Off cycles | 10000 |
Mounting hole | 578/578mm |
Lumen Maintenance LM80 | 50000h |
Starting time | <0.2sec |
Rated luminous flux | 4800lm |
Flicker | Flickerless |
UGR | <19 |
Correlated Color Temperature (CCT) | 4000K |
Color Rendering Index (CRI) | >80 |
Beam angle | 90⁰ |
